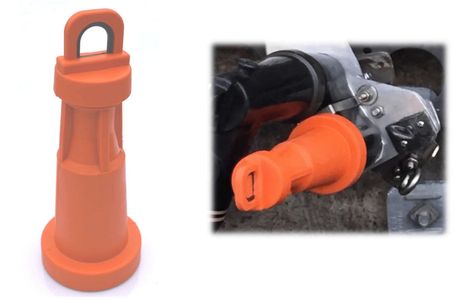

Bushing covers

RD-BC 15KV, RD-BC 25/35KV Small Interface

RD-BC 35KV-L Large Interface

Bushing Covers: RD-BC15KV, RD-BC25/35KV Small Interface

Bushing Covers: RD-BC15KV, RD-BC25/35KV Small Interface

Bushing Covers: RD-BC15KV, RD-BC25/35KV Small Interface


  • Completely eliminates all drain wires
  • Completely eliminates potential arc flash hazard
  • 100% test indication of energized bushing without removing cover
  • IP67 submersible rating
  • Meets all requirements of ASTM F712 Class 4
  • Meets all pertinent IEEE386 requirements - Voltage withstand, sealing and mechanical make / break force.

Material: UV Stabilized TPE Polymer

Voltage Class: 15KV 25/35KV

Color: Orange

Country of Origin: Proudly made in the U.S.A.

Bushing Covers: RD-BC 35KV-L Large Interface

Bushing Covers: RD-BC15KV, RD-BC25/35KV Small Interface

Bushing Covers: RD-BC15KV, RD-BC25/35KV Small Interface


  • Completely eliminates all drain wires
  • Completely eliminates potential arc flash hazard
  • 100% test indication of energized bushing without removing cover
  • IP67 submersible rating
  • Meets all requirements of ASTM F712 Class 4
  • Meets all pertinent IEEE386 requirements - Voltage withstand, sealing and mechanical make / break force.

Material: UV Stabilized TPE Polymer

Voltage Class: 35KV

Color: Orange

Country of Origin: Proudly made in the U.S.A.
